GsmAlarm-330

The device works in conjunction with standard alarm systems and is designed for the transmission of alarm messages by GSM network.

Applications

• Alarm Systems
• Remote control

User/Installation manual

Main features

• Transmission of alarm messages to a central monitoring station by Contact ID format;
• Transmission of alarm messages to the user's mobile phone by SMS;
• 5 users are informed on the protected unit;
• 2 programmable outputs for remote control;
• Remote control by short call;
• Programmable user names and names of protected areas;
• Easy installation.

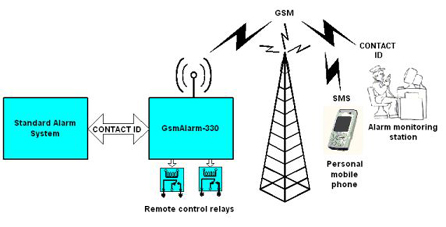

GsmAlarm-330 simulates the wired phone line and works in conjunction with the standard alarm system (Paradox, DSC, etc), supporting the Contact ID data format.

The device transmits information to a central monitoring station by Contact ID format and to the user by SMS. If the information on the protected object should be transmitted to the central monitoring station only, GsmAlarm-330 simply retranslates the outgoing data.

If it is necessary that the information on the protected object should be got by the user and the central monitoring station, GsmAlarm-330 decodes the Contact ID format data and sends to the user an SMS message with the description of an event (events). The device can send SMS messages to five independent users.

It is possible to use the mode when the information on the protected object is received by the user (users) only. In this case the reports are not send to the central monitoring station, the SMS messages are send to the users.

GsmAlarm-330 has two programmable outputs for remote control. Outputs can be controlled by a short call, SMS or DTMF commands from the user's phone. The programmable outputs can be used for the switching on or off of the remote storage system, switching on or off of the lighting, heating and ventilation system, for the control of the electromagnetic lock or gates.

All settings of GsmAlarm-330 device are programmable remotely, by sending a SMS message of the appropriate content.

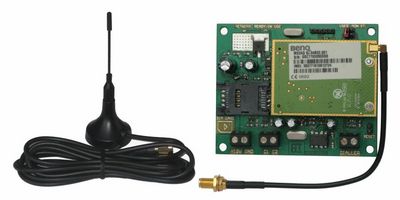

Main package contents

• GsmAlarm-330
• GSM antenna
• Users guide

Additional accessories (may be ordered for an extra payment)

• Metall box with transformer
